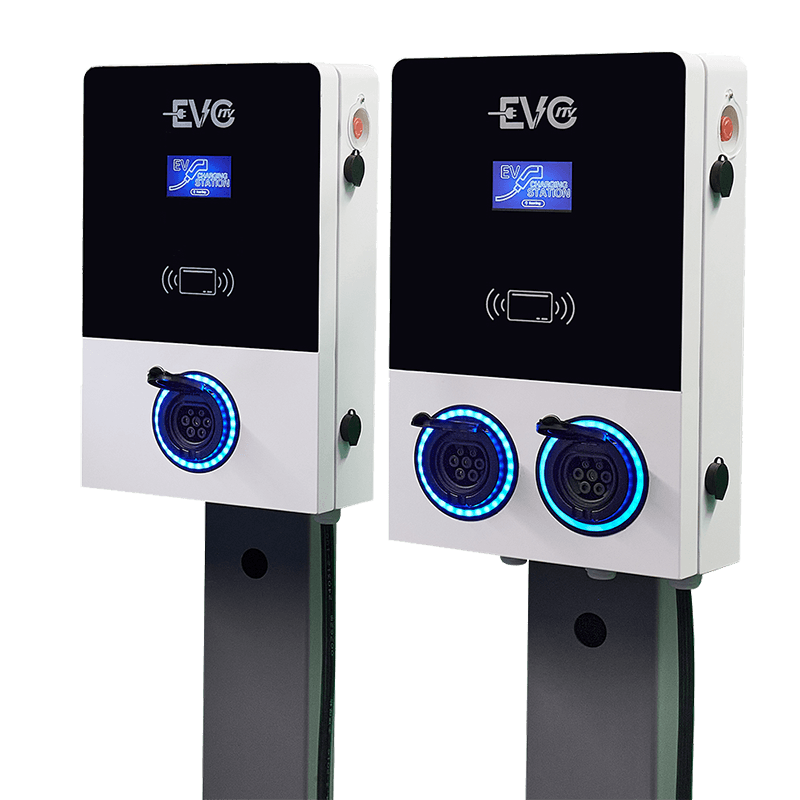

Product Highlight
1, Dynamic Load Balancing features
2, Multi-communication options for backend integration
3, Capable of charging at full power between -40̊ F to 133̊ F
4, Tested to IK10 High impact resistance
5, 2 years guarantee for hareware, 5 years guarantee for software.
6, CE,ISO, TUV rheinland Standard approved
7, OEM and ODM software platform and App
8, Tested to IK10 High impact resistance
9, MID Grade Charging Bill
10,Low standby power consumption for energy-saving

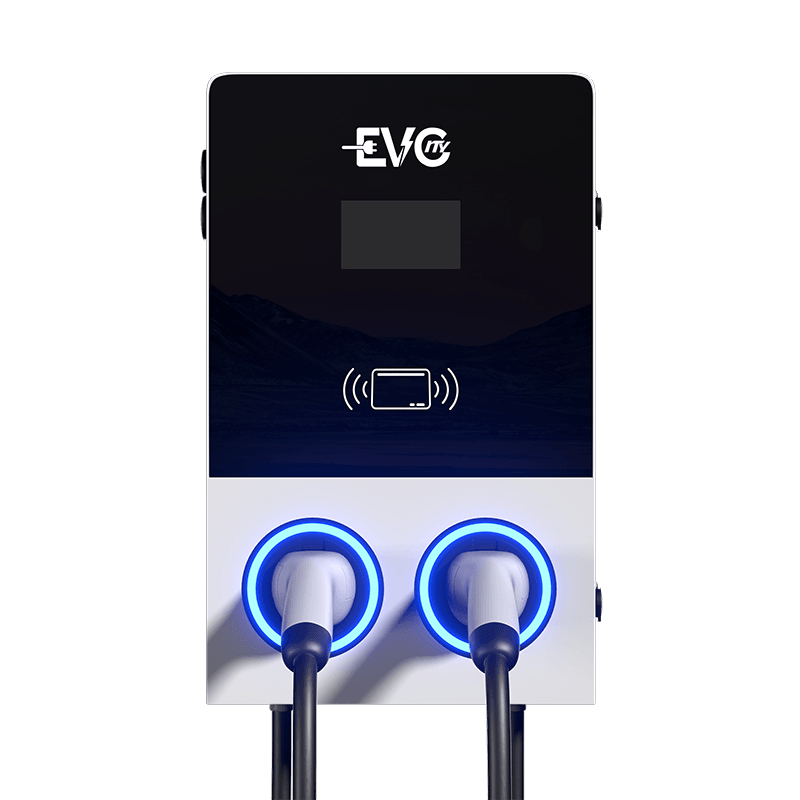

11,Dual Charger in one device
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

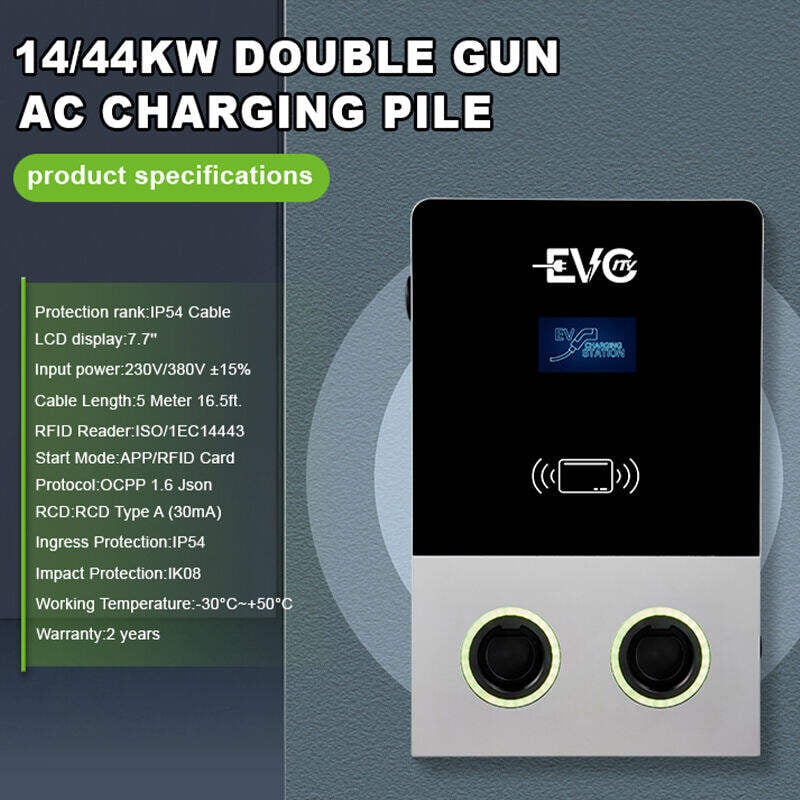

| Rated Power: | 14KW |

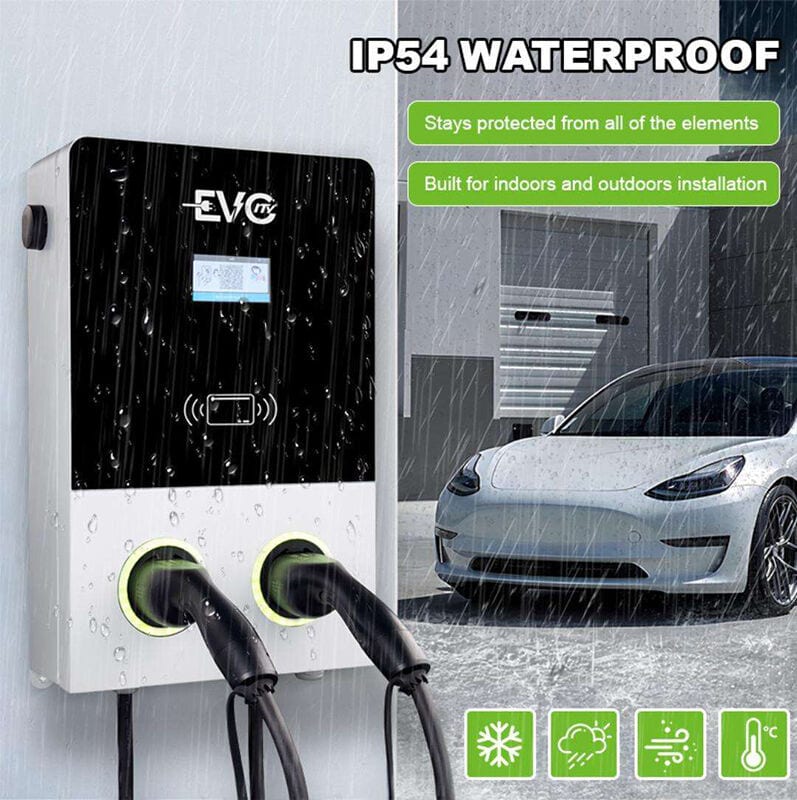

| Water Proof Level: | IP55 |
| Max Current: | 32A+32A |
| Output Voltage: | 230V AC |
| Input Voltage (AC): | 1P+N+PE 230V±10% |
| Connectors: | TYPE 2/GBT/TYPE 1 |
| Charger tpye: | 2Guns |
| Operating temperature | -20~+65°C |
| Display Screen: | 4.3 Inch Touch screen |

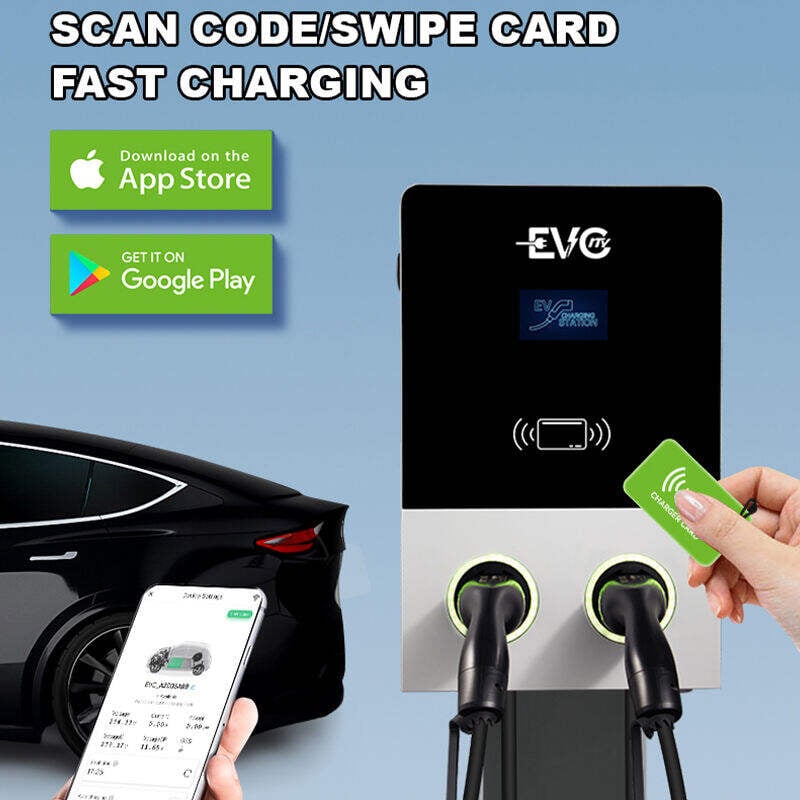

| User indentification: | Apps/RFID/credit card |
| Visual Indication: | Charging Status, System Error |
| Interface: | Ethernet/Wifi/Bluetooth/4G |

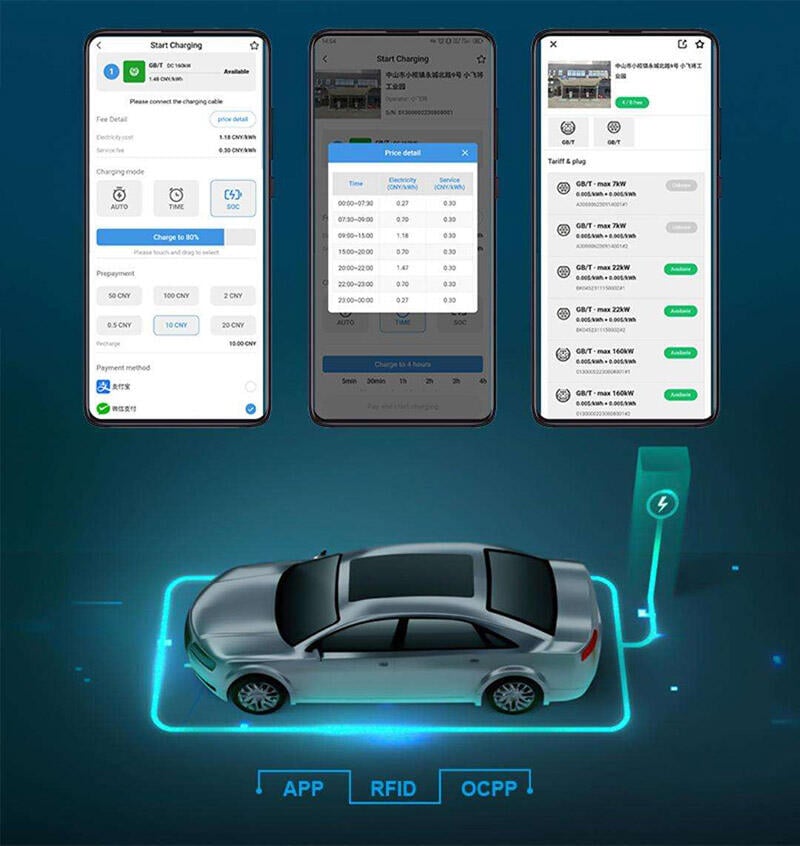

| APP Version | IOS,ANDROID |
| Protocol | OCPP1.6J |
| LED indicator: | Colorful Halo LED |
| APP Language: | English/繁體中文/Русский |
| Push Button: | Emergency Stop |
| Product life | MTBF:≥60,000 Hours |
| Cooling types | Natural cooling |
| Enclosure material | Enclosure material |

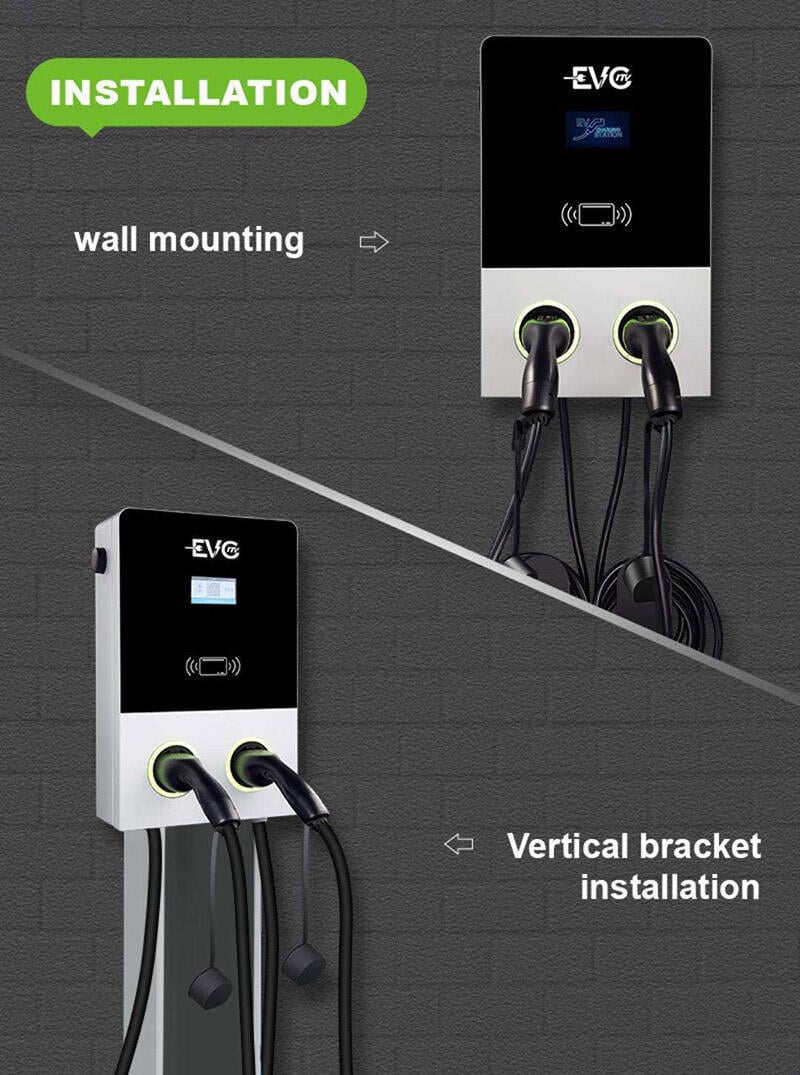

| Installation | Wall Mount/Pole-Mount |
| Product Dimension(L*W*H): | 500*300*150(MM) |
| Net Weight: | 15.5KGS |
| Carton package | Carton box |
| Wire Length | 5 Meters/16ft(Optional) |
| Certification: | CE |
